MLCTF HTBVisionChip 2023

This is a challenge from my club’s training session I solved in order to achieve a present and it is also my first AI-CTF related challenge out of those jailbreaking LLMs, here is my write up for it.

So, my teacher give us only a zip file called ml-visionchip and u can find it here

So in the zip, we got sth like this:

So first, we open the challenge.ipynb and we have:

It looks like it imports a model (maybe from model.py) and then it reads a pickled file named meta, deserializing it into a Python object, and storing that object in the variable label_meta, after that, it shows that the flag is show by an array filled with zeros has the the shape of (32,256), indicating that it will have 32 rows and 256 columns.

Now we should have a look at the state_dict.pt file ( I still dont even know what it is, but it is said to store the states of the model). Then we should look at the test_X.zip. Open it we would have a bunch of tiny photos showing of some places (notice that this is important for us).

Finishing the looking part, now head to the part where we did it. Look at the pics above, they share the same thing that they are all huge man-made structure, and this reminds me about the label_meta, let’s have a look at it (I have done sth in order to make it understandble for us to read):

{b'fine_label_names': [b'apple', b'aquarium_fish',b'baby',b'bear',b'beaver' b'bed',b'bee',b'beetle',b'bicycle',b'bottle', b'bowl',b'boy',b'bridge', b'bus',b'butterfly',b'camel',b'can', b'castle',b'caterpillar','cattle',b'chair',b'chimpanzee',b'clock',b'cloud',b'cockroach', b'couch',b'crab', b'crocodile', b'cup', b'dinosaur',b'dolphin',b'elephant',b'flatfish',b'forest',b'fox', b'girl',b'hamster',b'house', b'kangaroo',b'keyboard',b'lamp', b'lawn_mower', b'leopard',b'lion', b'lizard',b'lobster',b'man',b'maple_tree',b'motorcycle',b'mountain',b'mouse', b'mushroom', b'oak_tree',b'orange', b'orchid',b'otter','palm_tree',b'pear',b'pickup_truck', b'pine_tree', b'plain', b'plate', b'poppy',b'porcupine',b'possum',b'rabbit',b'raccoon',b'ray', b'road',b'rocket', b'rose', b'sea',b'seal', b'shark', b'shrew',b'skunk', b'skyscraper',b'snail',b'snake',b'spider', b'squirrel',b'streetcar', b'sunflower',b'sweet_pepper',b'table', b'tank',b'telephone',b'television', b'tiger', b'tractor', b'train', b'trout', b'tulip', b'turtle',b'wardrobe',b'whale', b'willow_tree',b'wolf', b'woman', b'worm'],

 b'coarse_label_names': [b'aquatic_mammals',b'fish',b'flowers',b'food_containers', b'fruit_and_vegetables', b'large_carnivores',b'household_electrical_devices',b'household_furniture',b'insects',
  b'large_man-made_outdoor_things',
  b'large_natural_outdoor_scenes', b'large_omnivores_and_herbivores', b'medium_mammals' b'non-insect_invertebrates',b'people','reptiles',b'small_mammals',b'trees', b'vehicles_1', b'vehicles_2'],

 b'label_map':{
  b'aquatic_mammals': [b'beaver',b'dolphin', b'otter',b'seal',b'whale'],

  b'fish': [b'aquarium_fish', b'flatfish', b'ray', b'shark', b'trout'],

  b'flowers': [b'orchid', b'poppy', b'rose', b'sunflower', b'tulip'],

  b'food_containers': [b'bottle', b'bowl', b'can', b'cup', b'plate'],

  b'fruit_and_vegetables': [b'apple',b'mushroom', b'orange',b'pear', b'sweet_pepper'],

  b'household_electrical_devices': [b'clock',b'keyboard',b'lamp',b'telephone', b'television'],

  b'household_furniture': [b'bed', b'chair', b'couch', b'table', b'wardrobe'],

  b'insects': [b'bee', b'beetle', b'butterfly', b'caterpillar', b'cockroach'],

  b'large_carnivores': [b'bear', b'leopard', b'lion', b'tiger', b'wolf'],

  b'large_man-made_outdoor_things': [b'bridge',
   b'castle',
   b'house',
   b'road',
   b'skyscraper'],

  b'large_natural_outdoor_scenes': [b'cloud',b'forest',b'mountain',b'plain',b'sea'],

  b'large_omnivores_and_herbivores': [b'camel', b'cattle',b'chimpanzee',b'elephant',b'kangaroo'],

  b'medium_mammals': [b'fox', b'porcupine', b'possum', b'raccoon',b'skunk'],

  b'non-insect_invertebrates': [b'crab', b'lobster', b'snail',b'spider',b'worm'],

  b'people': [b'baby', b'boy', b'girl', b'man', b'woman'],

  b'reptiles': [b'crocodile', b'dinosaur', b'lizard', b'snake', b'turtle'],

  b'small_mammals': [b'hamster', b'mouse', b'rabbit', b'shrew',b'squirrel'],

  b'trees': [b'maple_tree', b'oak_tree',b'palm_tree', b'pine_tree', b'willow_tree'],

  b'vehicles_1': [b'bicycle',b'bus',b'motorcycle',b'pickup_truck',b'train'],

  b'vehicles_2': [b'lawn_mower',b'rocket',b'streetcar',b'tank',b'tractor']}}

We can see that we have 3 groups in the label_meta: fine_label_names, coarse_label_names and label_map. The coarse consists part of the fine and the map shows the both of them standing together. Haha, now we see that there is large_man-made_outdoor_things which related to those tiny pics we have above. So till now, we know that the model (which is MobileNetV2, which is often used for image classification, object detection, and semantic segmentation on mobile and edge devices) will do something, in order to evaluate the connection between label_meta and test_X, so just write a short script to show what we have done:

from tqdm import tqdm # this is a library for a progress bar
from natsort import natsorted
import os
from PIL import Image

model.load_state_dict(torch.load(f'state_dict.pt')) # loads the state dictionary of a PyTorch model from a file named 'state_dict.pt'.
model.eval() # sets the model to evaluation mode, which disables dropout and batch normalization layers, ensuring consistent inference results.

# getting meta data
label_names = [a.decode() for a in label_meta [b'fine_label_names']]
things = [a.decode() for a in label_meta [b'label_map'][b'large_man-made_outdoor_things']]

# Load all image paths in test_dir folder
test_dir= f'test_X' # unzip before running
img_paths = [os. path.join(test_dir, f) for f in natsorted (os. listdir(test_dir))]
transform = transforms. ToTensor()

result = []

# Loop over the image paths and load each image
for path in tqdm (img_paths):
    img= Image.open(path)
    image = preprocess (img). unsqueeze (0)
    index = int(model(image).argmax())
    r = 0 if label_names [index] in things else 1
    result.append(r)

Then it is clear now, we will try to mapping the image with the label, or labelling for clarify, and then showing the result under numpy array.

from matplotlib import pyplot as plt
plt.imshow(np.array(result).reshape((32, 256)), cmap="gray")
plt.show()

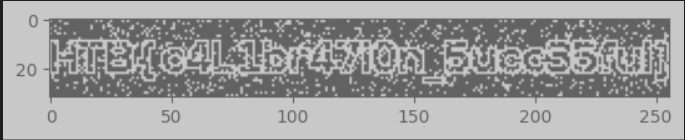

And we got:

To me, it is such a good challenge for beginners cuz it teaches us some good points in image classification and some basic neccessary libraries. Has been saying it for beginners but I nearly spent 3 hours for it and couple more hours to fully understand. If u want to reproduce, download the file and just load the model, then paste the code above into ur code and it is done. The above script is my way in order to solve this and i dont know if it is intended or not, if u have some other ways, feel free to text me. Thanks for reading!
